AMD Ryzen™ Z1 Extreme 16GB 512GB PCIe® 4.0 NVMe 7-inch FHD (1920 x 1080) IPS-level glossy display Gorilla® Glass DXC 120Hz Touch Screen 7ms AMD Radeon™ Graphics WHITE Windows 11 Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.2
ASUS ROG Ally Gaming Console
Operating System
Windows 11 Home
Processor
AMD Ryzen™ Z1 Processor (“Zen4″ architecture with 4nm process, 6-core /12-threads, 22MB total cache, up to 4.90 Ghz boost)
Graphic Card
AMD Radeon™ Graphics (AMD RDNA™ 3, 12 CUs, up to 2.7 GHz, up to 8.6 Teraflops)
Display
7-inch, FHD (1920 x 1080) 16:9, IPS-level glossy display, sRGB: 100%, Adobe: 75.35%, Gorilla® Glass DXC, Gorilla® Glass Victus™, Touch Screen (10-point multi-touch), Refresh Rate: 120Hz, Response Time: 7ms, Brightness: 500nits, FreeSync Premium
Memory
16GB LPDDR5 on board (6400MT/s dual channel)
Storage
512GB PCIe® 4.0 NVMe™ M.2 SSD (2230)

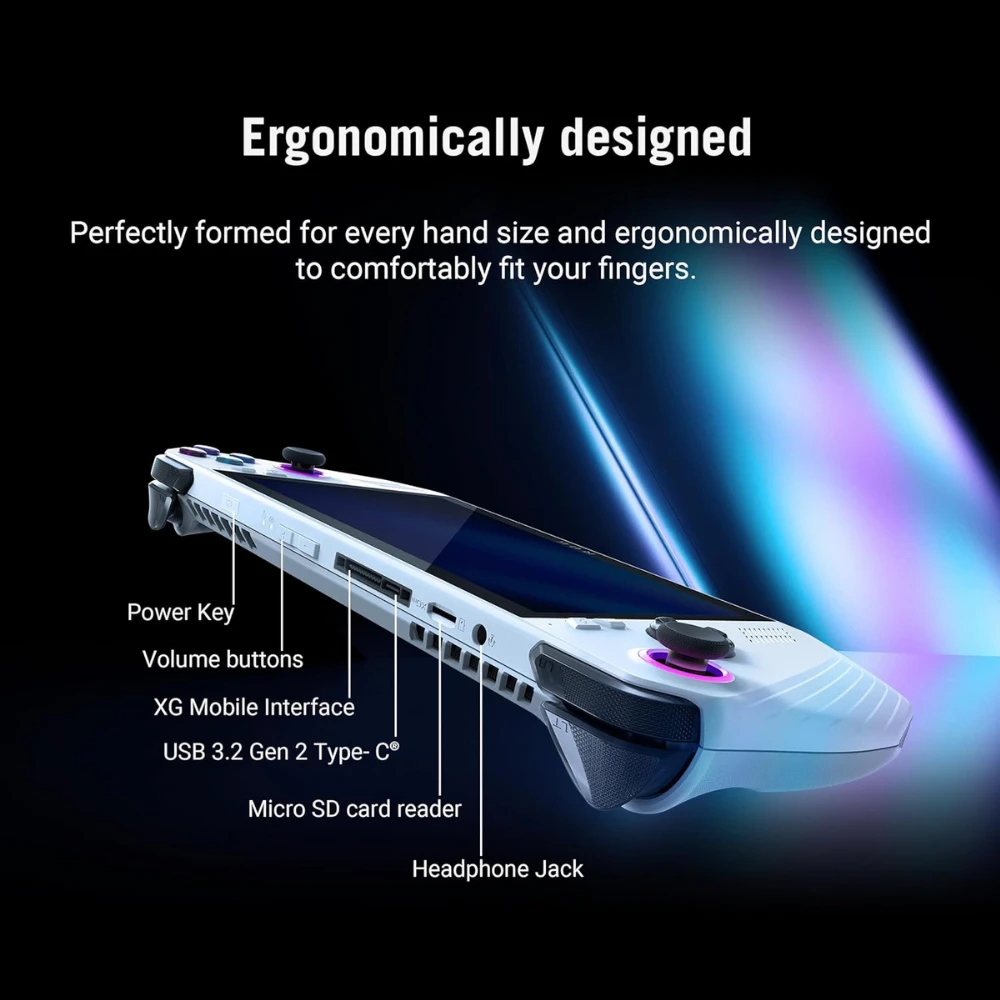

I/O Ports
1x 3.5mm Combo Audio Jack
1x ROG XG Mobile Interface and USB Type-C combo port (with USB 3.2 Gen2, support DisplayPort™ 1.4)
1x UHS-II microSD card reader (supports SD, SDXC, and SDHC)
Control and Input
A B X Y buttons
D-pad
L & R Hall Effect analog triggers
L & R bumpers
View button
Menu button
Command Center button
Armoury Crate button
2 x assignable grip buttons
Thumbsticks: 2 x full-size analog sticks
Haptics: HD haptics
Gyro: 6-Axis IMU
Audio
AI noise-canceling technology
Hi-Res certification
Dolby Atmos
Built-in array microphone
2-speaker system with Smart Amplifier Technology
Network and Communication
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.2 (*Bluetooth® version may change with OS version different.)
Battery
40WHrs, 4S1P, 4-cell Li-ion
Power Supply
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal
AURA SYNC
Yes
Weight
608 g
Dimensions (W x D x H)
28.0 x 11.1 x 2.12 ~ 3.24 cm (11.02″ x 4.37″ x 0.83″ ~ 1.28”)
Security
Built-in Fingerprint Sensor
Microsoft Pluton security processor
